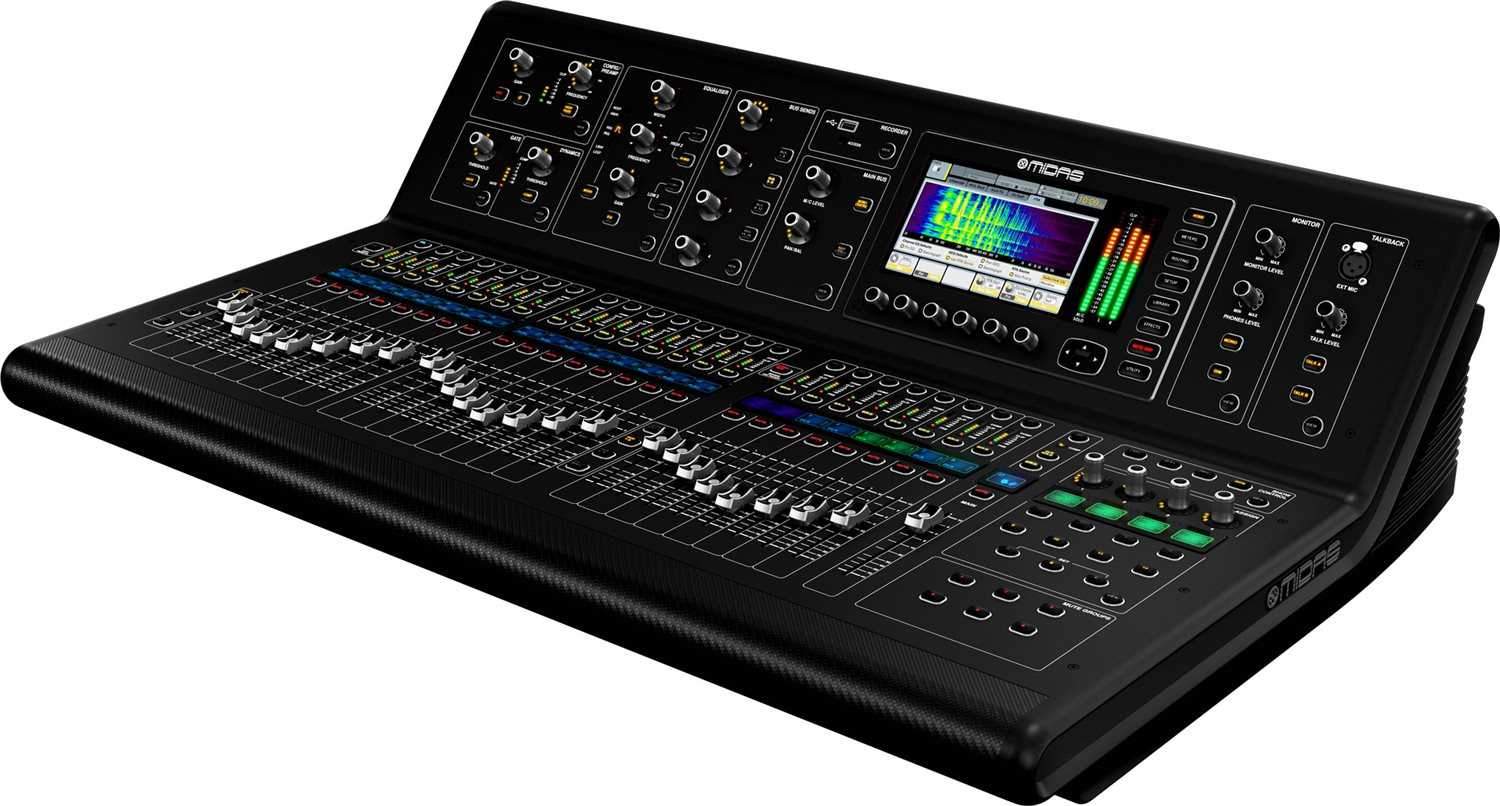

Behringer X32/Midas M32 config.bak

Warning

The info in the blog are based on my own experience and for information only. If you f**k up your board by editing the file, it's your choice and your responsability.

Introduction

The X32/M32 core engine is a PC board running a customized Linux. What is cool with this is most configuration files are actually text files, that can be stored on an USB bey and edited. If you know a little bit of vi and awk, you can edit the files directly.

console.bak

This file contains a backup of the board configuration (all parameters). It's a text file, divided in multiple sections.

Links

How a channel (odd) is linked to the next one (even). There is one toggle (ON or OFF) for 2 channels.

/config/chlink ON ON ON OFF ON ON OFF OFF ON ON ON ON ON OFF ON OFF
/config/auxlink ON ON ON ON
/config/fxlink ON ON ON ON
/config/buslink ON ON ON ON ON ON OFF OFF
/config/mtxlink ON OFF OFF
For example, ON on the first position indicates Channel 1 and 2 are linked:
/config/chlink ON ON ON OFF ON ON OFF OFF ON ON ON ON ON OFF ON OFF
               ^^
               Channels 1 and 2 are linked.
The same principle applies to aux, FX, bus and matrices.

MUTE buttons

/config/mute ON OFF OFF OFF OFF OFF

??

 /config/linkcfg ON ON ON ON

Monitor

/config/mono LR+M OFF

Status of Solo, Talkbacks and Oscillator

/config/solo   0.0 LRAFL 0.0 PFL PFL PFL OFF OFF OFF -6 ON OFF OFF   0.3 OFF OFF OFF
/config/talk ON EXT
/config/talk/A -12.0 OFF OFF %000000000000000000
/config/talk/B -12.0 OFF ON %000000000000000000
/config/osc -40.0 100.2 1k00 F1 WHITE 0
The Oscillator is in the Monitor section .

User Routing Slots

/config/userrout/out 33 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
/config/userrout/in 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Routing

    The configuration of Routing
  • Inputs (REC or PLAY)
     /config/routing REC
  • Channel Processing Block Patch, Inputs
     /config/routing/IN AN1-8 A9-16 AN17-24 A1-8 AUX1-4
  • AES50A Outputs
     /config/routing/AES50A OUT1-8 OUT9-16 A1-8 A9-16 P161-8 P169-16
  • AES50B Outputs
     /config/routing/AES50B OUT1-8 OUT9-16 OUT1-8 OUT9-16 P161-8 P169-16
  • Expansion Card Outputs
     /config/routing/CARD B1-8 B9-16 B17-24 B25-32
  • XLR Outputs
     /config/routing/OUT AN1-4 AN5-8 AN9-12 AN13-16
  • Channel Processing Block Patch, Inputs in Play mode
     /config/routing/PLAY CARD1-8 CARD9-16 CARD17-24 CARD25-32 AUX1-4

User Assign Section

  • Set A, screen bank color (CYAN)
     /config/userctrl/A CY
  • Set A, encoders
     /config/userctrl/A/enc "X001" "X101" "X201" "X300"
  • Set A, buttons
     /config/userctrl/A/btn "O40" "O42" "X201" "X300" "P0051" "P0052" "P0053" "P0058"
Same for set B and C
/config/userctrl/B GN
/config/userctrl/B/enc "DG" "DJ" "DK" "DL"
/config/userctrl/B/btn "P0010" "P0011" "P0012" "P0013" "A0" "A1" "P0000" "P0000"
/config/userctrl/C YE
/config/userctrl/C/enc "U2" "U1" "-" "U0"
/config/userctrl/C/btn "U11" "U10" "P0036" "U09" "U00" "U06" "U02" "U05"

Tape, Auto-Mix and DP48

/config/tape 0.0 0.0 OFF
/config/amixenable OFF OFF
/config/dp48 %0000 0 AESA
/config/dp48/assign 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
/config/dp48/link 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 1 1 0 1 1 0 0
/config/dp48/grpname "" "" "" "" "" "" "" "" "" "" "" ""

Channels

/ch/01/config "MatrixBrute" 1 BL 1
/ch/01/delay OFF   0.3
/ch/01/preamp +0.0 OFF OFF 24  20

/ch/01/gate OFF GATE -80.0 60.0 10 50.2  258 0
/ch/01/gate/filter OFF 3.0 990.9

/ch/01/dyn OFF COMP PEAK LOG 0.0 3.0 1 0.00 10 10.0  151 POST 0 100 OFF
/ch/01/dyn/filter OFF 3.0 990.9

/ch/01/insert OFF POST OFF

/ch/01/eq OFF
/ch/01/eq/1 PEQ 124.7 +0.00 2.0
/ch/01/eq/2 PEQ 496.6 +0.00 2.0
/ch/01/eq/3 PEQ 1k97 +0.00 2.0
/ch/01/eq/4 HShv 10k02 +0.00 2.0

/ch/01/mix ON   0.0 ON -100 OFF   -oo
/ch/01/mix/01 ON  -9.3 -100 EQ-> 0
/ch/01/mix/02 ON  -9.3
...
/ch/01/mix/16 ON   -oo

/ch/01/grp %00000000 %000000
/ch/01/automix OFF  +0.0
AUX inputs configuration
/auxin/01/config "Lexicon MPX1" 55 GN 33
/auxin/01/preamp +0.0 OFF
/auxin/01/eq OFF

/auxin/01/eq/1 PEQ 124.7 +0.00 2.0
...
/auxin/01/eq/4 HShv 10k02 +0.00 2.0

/auxin/01/mix ON  +1.8 ON -100 OFF   -oo
/auxin/01/mix/01 ON   -oo -100 EQ-> 0
/auxin/01/mix/02 ON   -oo
...
/auxin/01/mix/16 ON   -oo
/auxin/01/grp %00000000 %000000
Same for AUX 01 to 08
Effects Return configuration
/fxrtn/01/config "" 61 MG

/fxrtn/01/eq OFF
/fxrtn/01/eq/1 PEQ 124.7 +0.00 2.0
/fxrtn/01/eq/2 PEQ 496.6 +0.00 2.0
/fxrtn/01/eq/3 PEQ 1k97 +0.00 2.0
/fxrtn/01/eq/4 HShv 10k02 +0.00 2.0

/fxrtn/01/mix ON   0.0 ON -100 OFF   -oo
/fxrtn/01/mix/01 ON   -oo -100 POST 0
/fxrtn/01/mix/02 ON   -oo
...
/fxrtn/01/mix/16 ON   -oo
Same for FX 01 to 08
Bus configuration
/bus/01/config "DP24 Input A" 71 CY
/bus/01/dyn OFF COMP RMS LOG 0.0 3.0 1 0.00 10 10.0  151 POST 0 100 OFF
/bus/01/dyn/filter OFF 3.0 990.9
/bus/01/insert OFF PRE OFF
/bus/01/eq OFF
/bus/01/eq/1 LShv 79.6 +0.00 2.0
/bus/01/eq/2 PEQ 158.9 +0.00 2.0
/bus/01/eq/3 PEQ 496.6 +0.00 2.0
/bus/01/eq/4 PEQ 1k97 +0.00 2.0
/bus/01/eq/5 PEQ 5k02 +0.00 2.0
/bus/01/eq/6 HShv 10k02 +0.00 2.0
/bus/01/mix ON   0.0 ON -100 OFF  -8.5
/bus/01/mix/01 ON   -oo -100 POST 0
/bus/01/mix/02 ON   -oo
/bus/01/mix/03 ON   -oo -100 POST 0
/bus/01/mix/04 ON   -oo
/bus/01/mix/05 ON   -oo -100 POST 0
/bus/01/mix/06 ON   -oo
/bus/01/grp %00000000 %000000
Same for Bus 01 to 16
Matrix configuration
/mtx/01/config "" 72 MG
/mtx/01/preamp OFF
/mtx/01/dyn OFF COMP RMS LOG 0.0 3.0 1 0.00 10 10.0  151 POST 100 OFF
/mtx/01/dyn/filter OFF 3.0 990.9
/mtx/01/insert OFF PRE OFF
/mtx/01/eq OFF
/mtx/01/eq/1 LShv 79.6 +0.00 2.0
/mtx/01/eq/2 PEQ 158.9 +0.00 2.0
/mtx/01/eq/3 PEQ 496.6 +0.00 2.0
/mtx/01/eq/4 PEQ 1k97 +0.00 2.0
/mtx/01/eq/5 PEQ 5k02 +0.00 2.0
/mtx/01/eq/6 HShv 10k02 +0.00 2.0
/mtx/01/mix ON  +0.2
Same for Matrix 01 to 06
Main Stereo and Mono Outputs configuration
/main/st/config "" 66 WH
/main/st/dyn OFF COMP RMS LOG 0.0 3.0 1 0.00 10 10.0  151 POST 100 OFF
/main/st/dyn/filter OFF 3.0 990.9
/main/st/insert OFF PRE OFF
/main/st/eq OFF
/main/st/eq/1 LShv 79.6 +0.00 2.0
/main/st/eq/2 PEQ 158.9 +0.00 2.0
/main/st/eq/3 PEQ 496.6 +0.00 2.0
/main/st/eq/4 PEQ 1k97 +0.00 2.0
/main/st/eq/5 PEQ 5k02 +0.00 2.0
/main/st/eq/6 HShv 10k02 +0.00 2.0
/main/st/mix ON  -4.5 +0
/main/st/mix/01 ON   -oo +0 POST 0
/main/st/mix/02 ON   -oo
/main/st/mix/03 ON   -oo +0 POST 0
/main/st/mix/04 ON   -oo
/main/st/mix/05 ON   -oo +0 POST 0
/main/st/mix/06 ON   -oo
/main/st/grp %00000000 %000000
Same for Mono Output (/main/m/config)
DCA configuration
/dca/1 ON   -oo
/dca/1/config "TX816 A" 70 CY
Same for DCA 1 to 8
FX configuration
/fx/1 VRM
/fx/1/source MIX13 MIX13
/fx/1/par 62 0.75 18 4 50 3.5 0.40 3.63 143 604 58 124 OFF 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Same for FX 1 to 8
Output configuration
/outputs/main/01 4 POST OFF
/outputs/main/01/delay OFF   0.5
...
/outputs/main/16 75 POST OFF
/outputs/main/16/delay OFF   0.3

/outputs/aux/01 0 POST OFF
...
/outputs/aux/06 5 POST OFF

/outputs/p16/01 26 <-EQ OFF
/outputs/p16/01/iQ OFF none Linear 0
...
/outputs/p16/16 41 <-EQ OFF
/outputs/p16/16/iQ OFF none Linear 0
/outputs/aes/01 74 POST OFF
/outputs/aes/02 75 POST OFF
/outputs/rec/01 3 IN/LC
/outputs/rec/02 3 IN/LC
Output configuration
/headamp/000 +14.0 OFF
/headamp/001 +14.0 OFF
...
/headamp/127 +14.0 OFF
Names of all channels: awk '/\/ch\/..*\/config/ {print $5, $2}' console.bak
